Standard Frequency, Low Power Oscillator
The SiT1602B is a low power, fixed-frequency oscillator. It provides the perfect combination of low power consumption, excellent stability, small size, fast startup, and short lead time for a wide range of applications.
For a similar device in a SOT23-5 package, refer to theSiT2001B.
| Oscillator Type | XO-SE |
| Frequency | 52 standard frequencies |
| Frequency Stability (ppm) | ±20, ±25, ±50 |
| Phase Jitter (rms) | 1.3 ps |
| Output Type | LVCMOS |
| Operating Temperature Range (°C) | -20 to +70, -40 to +85 |
| FlexEdgeTMRise/Fall Time | Yes |
| Voltage Supply (V) | 1.8, 2.5 to 3.3, 1.8 to 3.3 (sampling) |
| Package Type (mm²) | 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 |
| Features | Field programmable |
| Availability | Production |
Industry standard footprints (2016 & 2520 packages) for all frequencies, voltages, and stabilities
SiT1602 pin assignments with programmable pin 1 that can be set to Output Enable, Standby, or No Connect to optimize power consumption

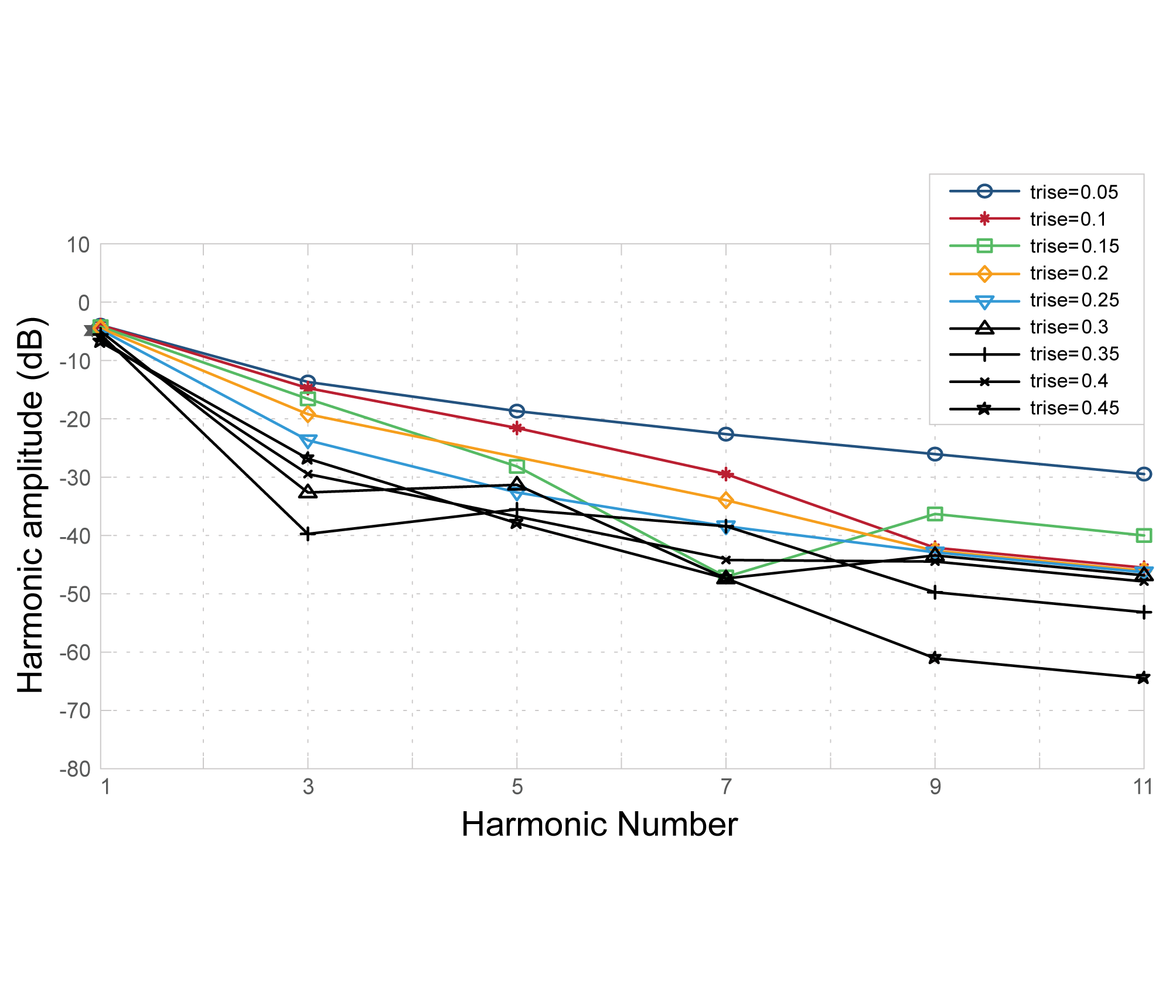

Configurable FlexEdge drive strength reduces EMI by slowing rise/fall time – for example the 11th clock harmonic is reduced by 35 dB by increasing the rise/fall edge from 5% to 45% of the period
Configurable feature sets
- 52 standard frequencies
- Stability from ±20 ppm to ±50 ppm
- Industrial or extended commercial temp.
- 1.8 V or 2.5 V to 3.3 V supply voltage:
- Customize specification for optimal system performance
- Use same base device for many designs reducing qualification needs;
Small 2016 & 2520 packages for all frequencies, voltages, and stabilities
- Save more board space without compromising performance and availability;
Low power consumption
- 1.2 µA typical standby current (1.8 V)
- 3.6 mA typical active current (1.8 V):
- Extends battery life in portable applications
- Reduces power consumption for greener systems;
FlexEdge™ configurable drive strength
- Slower rise/fall time that minimizes EMI from the oscillator
- Saves cost by driving multiple loads and eliminate additional timing components;
Ultra-fast lead time (4 to 6 weeks)
- Reduce inventory overhead
- Mitigate shortage risks
- Digital still cameras (DSC)
- Digital camcorders
- Portable media players (PMP)
- Mobile TV tuners (portable TV, CMME, DMB, etc.)
- Portable storage devices
- Audio and processor clocking in portable navigation devices (PND)
- IP CAM
- DVR
- FM modules
- Non-baseband clocking in mobile phones (camera modules, multimedia chipsets, etc.)
- Portable gaming devices
- Other handheld applications (eePC, portable test equipment, etc.)
