1至80 MHz,±10至±50ppm振荡器

SIT8208是用于电信,存储,网络和无线应用的高性能振荡器。它是行业的第一个MEMS振荡器,可在所有温度范围内提供500个典型的集成RMS相位抖动(12kHz至20MHz)和±10ppm频率稳定性。它支持必威体育官网手机登录丰富的可配置功能,例如从1到80 MHz和FlexEdge™EMI减少技术的任何频率,提高系统性能并改善了上市时间。SIT8208在占地面积和包装中与传统石英,SAW和OXTRONE振荡器兼容,并在没有任何设计变化的情况下替换这些设备。

程序振荡器以获得即时样本,优化的性能和快速原型|Learn More

View related products:80 to 220 MHz|XO lineup

工业标准套件用于替换石英振荡器,无需任何板变化
Oscillator Type XO-SE.
Frequency 1到80 MHz
频率稳定性(PPM) ±10, ±20, ±25, ±50
阶段抖动(RMS) 0.5 PS.
输出类型 LVCMOS
工作温度范围(°C) -20至+70,-40至+85
FlexEdgeTMRise/Fall Time Yes
Voltage Supply (V) 1.8, 2.5 to 3.3
Package Type (mm²) 2.5x2.0,3.2x2.5,5.0x3.2,7.0x5.0
Features Field programmable, Low jitter
Availability Production

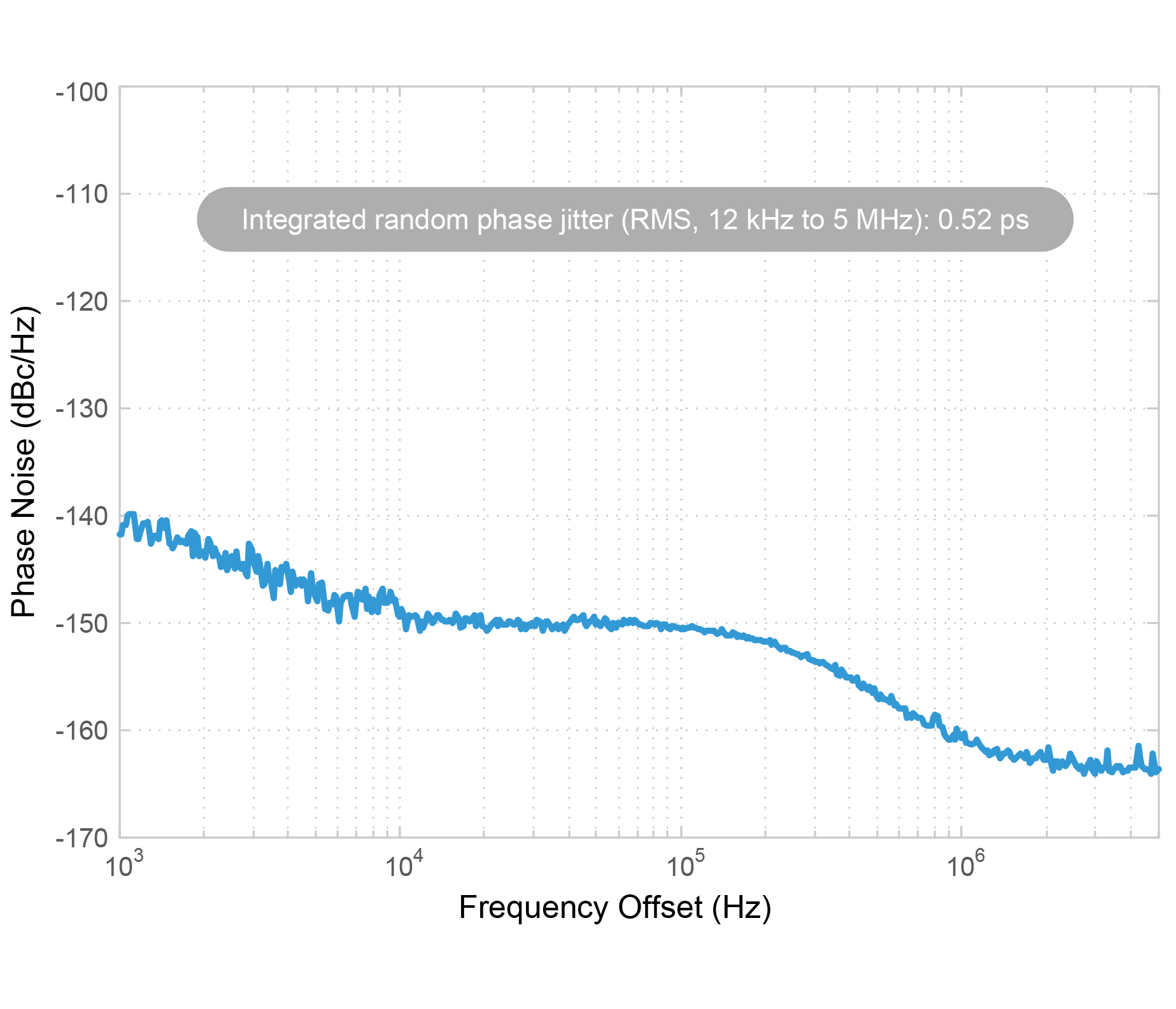

<1ps integrated RMS phase jitter (12 kHz to 20 MHz)

  • Excellent jitter margin for the most stringent applications

Excellent frequency stability, as low as ±10 ppm

  • Better timing margin that enhances system stability and robustness

Extensive programmability

  • Frequency from 1 to 80 MHz
  • Supply voltage of 1.8 V; 2.5 V to 3.3 V
  • Frequency stability from ±10 ppm to ±50 ppm:
  • Customized specifications for optimal system performance
  • 可以轻松地可用于操作范围内的任何设备规范

使用FlexEdge™技术可配置的驱动强度

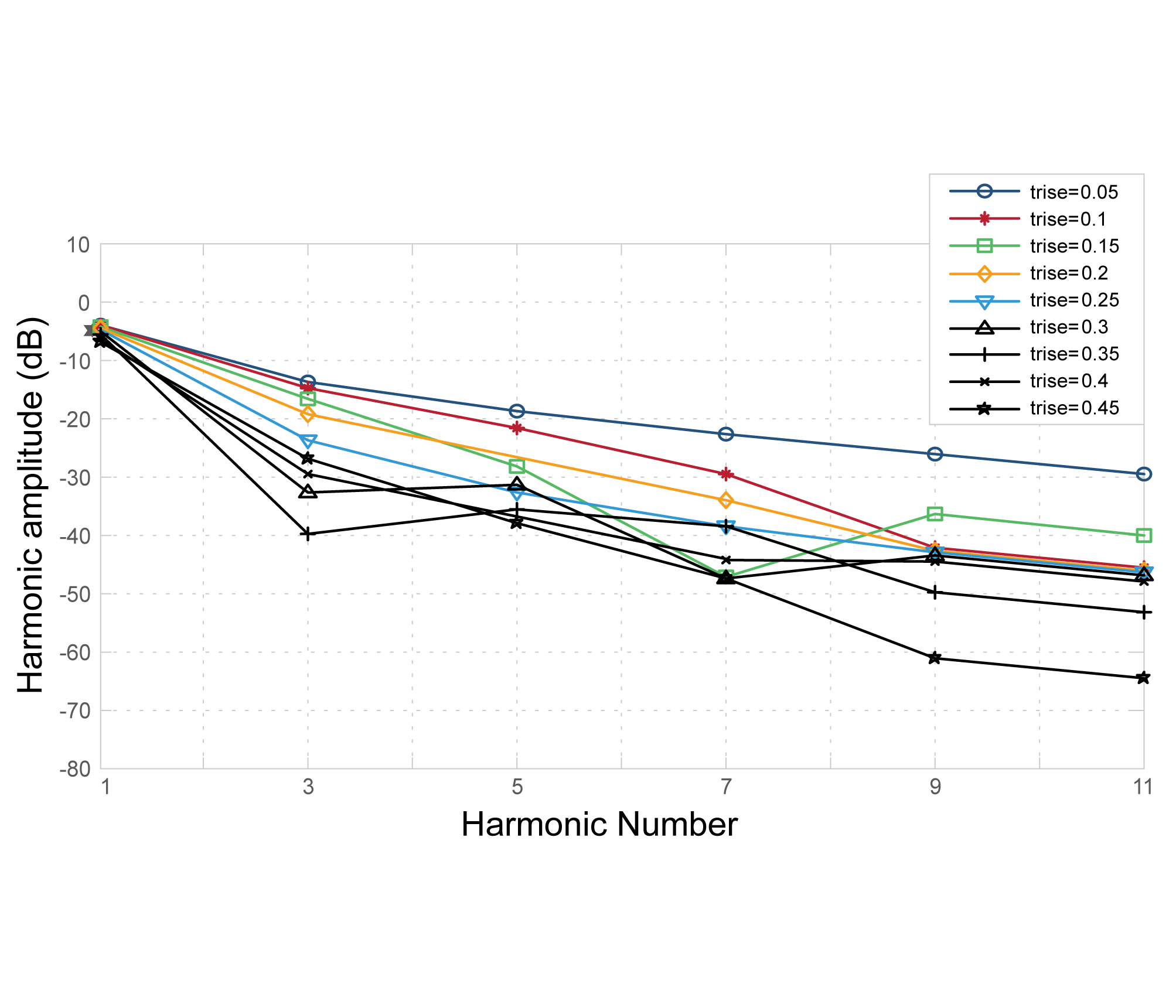

  • 减少升级/下降时间,减少系统EMI
  • Saves cost by driving multiple loads and eliminates external buffers;

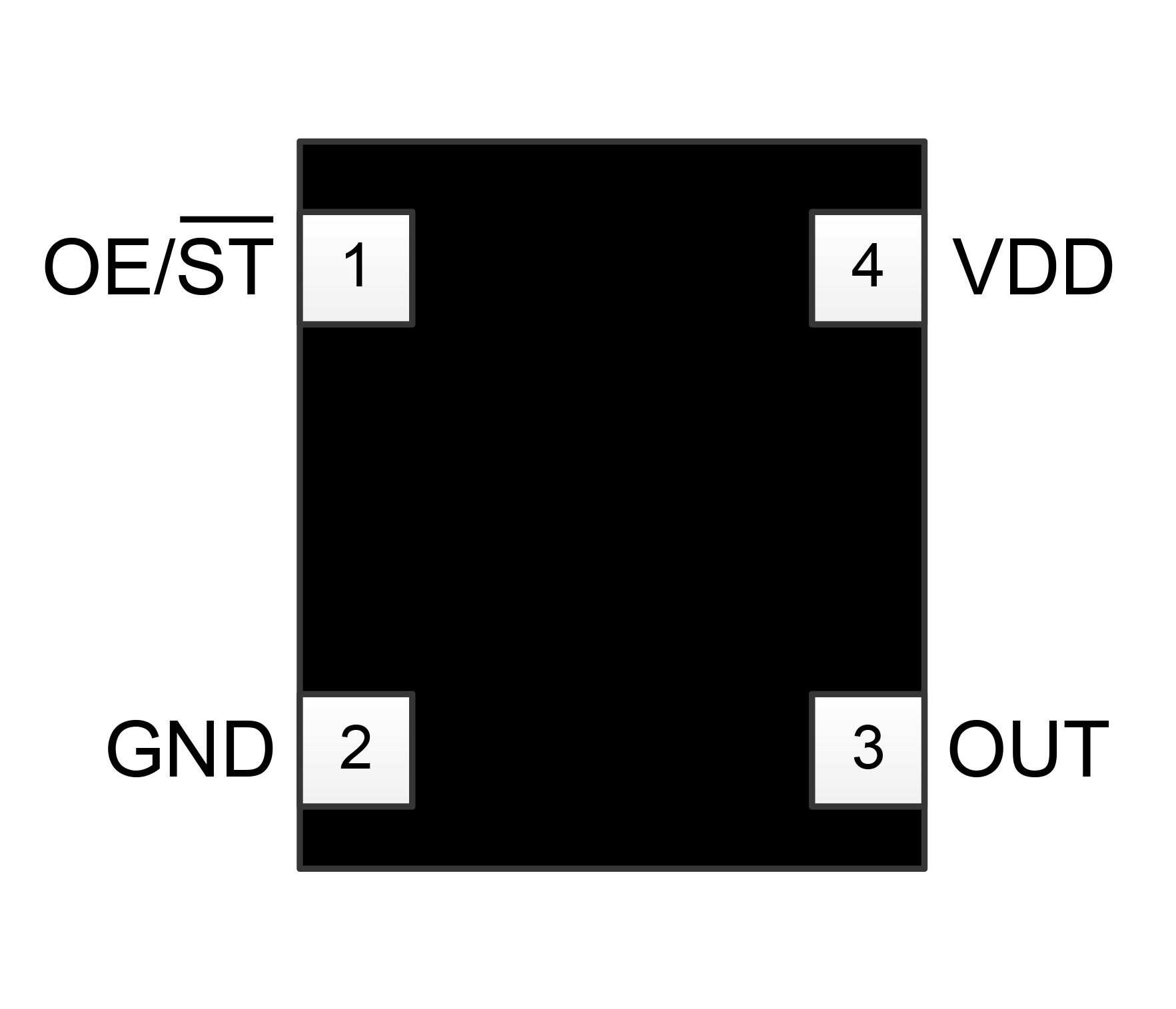

Three industry-standard packages

  • 100%替代石英振荡器,锯和泛音振荡器,没有任何设计变化;

4至6周的提前时间

  • Reduce inventory overhead
  • Mitigate shortage risks

  • 电信和光学设备
  • Storage servers & SSD
  • RAID控制器
  • Routers
  • Switches
  • Wireless equipment
  • SONET, SyncE
  • SATA/SAS
  • Fibre channel
  • 100M/1G/10G Ethernet
  • LTE, GSM, CDMA, WiFi
  • DSL & DOCSIS

狭窄:

Eval Boards联系Silime.– SiT6081 (2520) | SiT6082 (3225) | SiT6083 (5032) | SiT6084 (7050)

Frequency Slope (dF/dT) Calculator– Calculate frequency slope over temperature

抖动计算器和图- 将阶段噪声转换为相位抖动,找到相位噪声图

Time Machine II Programmer– Program frequency, voltage, stability & more

Reliability Calculator– Get FIT/MTBF data for various operating conditions

2724 4针|3225 4-Pins|5032 4针|7050 4-Pins– Preview packages with QFN 3D step models
